ACE GROUP PARTS FOR HEAVY MACHINES AND MORE

Asphalt and Concrete Pavers

RAPwrangler

Asphalt Plants

Elevating Scrapers

Material Transfer Vehicles, Pick-Up Machine & Live-Bottom Trailers

Asphalt & Concrete Paver PartS

BLS Tufpads Logo

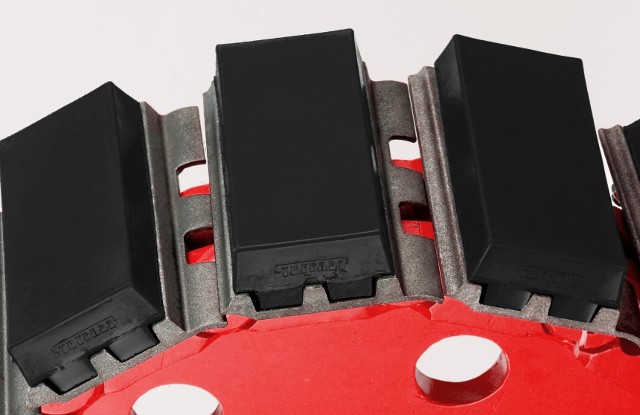

TRACK PADS

SAVING TIME AND MONEY, poly bolt-on and bonded track pads LAST LONGER than rubber pads while giving the TRACTION and PROTECTION you need.

Track Pad

BLS Tufpads Track Pads

Bridgestone Paver

These HIGH-QUALITY tracks are backed by a ONE-YEAR WARRANTY and DESIGNED FOR EXTREME WEIGHT AND WEATHER CONDITIONS that occur on a paving site.

Bridgestone Logo

ARTLINER & BLS Logo

FOR GOMACO (Commander III, GT-3600, and GT-6300), these clip-on pads are quick to install and remove which SAVES YOU TIME and REDUCES LABOR COSTS .


Provides TRACTION, surface PROTECTION and VERSATILITY you need.

Artliner BLS Track Pads

BLS Logo

PAVER PADS

High-Quality Pads

The BEST OPTION FOR BOTH TRACTION AND SURFACE PROTECTION, these track pads are manufactured with HIGH-QUALITY POLYURETHANE, giving them a  MUCH LONGER LIFETIME THAN ANY RUBBER ALTERNATIVE.

Get maximum life out your machine by ordering replacement CHAINS, ROLLERS, IDLERS and SPROCKETS.

High-Quality Steel Undercarriage Parts

HIGH-QUALITY STEEL UNDERCARRIAGE PARTS

Popular Brands BLS Provides Parts for Include:

  • Barber-Greene
  • Blaw-Knox
  • BOMAG
  • Carlson
  • Caterpillar
  • Cedarapids
  • Gilcrest
  • GOMACO
  • LeeBoy
  • Mauldin
  • Roadtec
  • Vogele
  • Weiler

Parts Available Include:


ASPHALT PAVER STEEL PARTS

Asphalt Paver Steel Parts

CHAIN & BAR ASSEMBLIES Chain and Bar Assemblies

Full chain and bar assemblies, designed and constructed to give you the best combination of strength and toughness, are available now for a variety of popular machine brands, including Barber-Greene, Blaw-Knox, Caterpillar, Cedarapids, Gilcrest, LeeBoy, Roadtec, Vogele and more.

We use high-quality chains from our partnerships with the leading chain manufacturers in the U.S.  These chains are designed to exceed the listed ultimate strength ratings, which is very significant.  Chains with greater ultimate strength have higher actual yield and greater fatigue strength.  With our chains, you get extra reserve strength to withstand high-shock loads.

Our manufacturers’ chains are built to withstand the most rugged conditions.  They use the latest heat-treating techniques to manufacture every component.  Each component is also carefully designed to close tolerances to ensure precise pitch control for smooth sprocket/chain interaction.  That means longer service or wear life for chains and sprockets.

Meanwhile, many of our competitors are still using imported chains, which are not made to stringent U.S. standard specifications.  Instead of saving you money, these inferior chains will significantly increase your cost-per-hour-of-operation and your overall down-time costs due to premature failure.

Chain & Bar

We supply inclined scraper conveyor chains in 4″ to 6″ pitch with both K- and slotted-M style attachments.  The chains are balanced to ensure continued safe operation, sidebars are hardened to resist the impact loading that may occur and rollers are specially heat-treated to resist outside diameter abrasion inherent in asphalt conveyors.  These special features make our chains long-lasting and keep your operation running smoothly.

Having started our manufacturing process with quality chains, we then add durable steel bars (also called flights or slats) and hardened pins, providing you with an amazing, hassle-free product.

With aggressive pricing and an extensive inventory available for immediate delivery, it's time for you to reach out to us for a free quote.

SCREED & FLOOR PLATES Screed

Screed and floor plates are now in stock for most major brands, including Allatt, Barber-Greene, Blaw-Knox, Caterpillar, Cedarapids and Ingersoll-Rand.  AR 450 Steel is our standard material for ALL screed and floor plates.  But, at your request, we can upgrade to AR 500 or Chromium Carbide.  Our plates have been proven to last at least four times longer than OEM plates.

SPROCKETSPaver Sprockets

Fabricated from C1045 steel and heat treated to a minimum of 50 RC hardness, our manufactured sprockets outlast some competing products by as much as five times.

We have an extensive inventory of sprockets and other steel undercarriage parts for thousands of machines in stock and ready to ship today.

AUGERS
Augers

We manufacture augers for all popular brands of paving machines.  Our cast augers and liners are made with a high chromium content for longer wear.  If we don’t have the augers for your machine, we can manufacture them on a custom basis.  We have a system which enables us to produce them for the exact dimensions you need.  For more information, contact us today.

BURNER BOXES Burner Box

Our burner boxes for Barber-Greene, Blaw-Knox and Caterpillar are constructed with a heavy-duty steel.  With the introduction of the superpave mixers, a large number of our customers are finding that they have to turn the screed temperatures up to get a smooth mat when they aren’t using our Chromium Carbide product.  This has resulted in drastically reduced wear-life for the burner chambers.  Our heavy construction is the answer to this.

PAVER BEARINGSPaver Bearings

We are authorized distributors of SealMaster bearings.  We can supply a full line of heat-resistant asphalt paver bearings for Allatt, Blaw-Knox, Cedarapids, Champion, Global machines and more.  Also, we can provide you with high-heat greaseable bearings for Barber-Greene and Blaw-Knox models.  Please send us your requirements and we will source the best product for your needs.

RAPwrangler

The RAPwrangler was designed to be powerful, efficient and easy to maintain.  It can be used to render football sized chunks down to suitable gradations.  The RAPwrangler eliminates the off-site pre-crushing of asphalt materials to be recycled.  For more information, call us today at 1-888-878-0898.

RAPWrangler

Rapwrangler Diagram

The 20″ rotor is equipped with 312 replaceable tungsten-tipped milling teeth that shred football size chunks of asphalt down to 1″ at a rate of 250 tons per hour.  The rotor spins at 127 RPM. constantly undermining the material in the 30″ x 40″ hopper directly above it.

It is designed to size material in congealed and oversized milling stockpiled at a rate of 20-250 TPH.  It processes up to football-sized pieces at a rate of 125TPH to 150TPH.  It may be set up with any size milling teeth.  Your cost of processing RAP is as low as $0.45 per ton.

RAPwrangler With Teeth

RAPwrangler With Teeth


Bottom View (Discharge)

Bottom View (Discharge)

50HP Shive Drive RAPwrangler

50HP Shive Drive RAPwrangler

50HP RAPwrangler

50HP RAPwrangler

50HP RAPwrangler Belt Drive

50HP RAPwrangler Belt Drive


ShowCASING RAPWRANGLER

Rapwrangler In Action 1 Rapwrangler In Action 2

The RAPwrangler is mounted on a steel frame base.  A portable feeder conveyor is on the left and a final conveyor is underneath feeding up to the drum plant.  Our engineers are standing by to assist you today.

Asphalt Plants

Asphalt Plant Parts

BASKET FLIGHTS

Basket flights can be produced with several modifications to improve the life of the part.  One of these modifications is by simply using a thicker bar along the top.

ACE Group will manufacture your flights to your specifications to suit your drum.  We typically use a 0.75″ x 0.75″ square rod for the tops of them, which is superior to OEM versions.  Not only is it better, but we can also produce them at a cheaper cost for you.

We can also duplicate virtually any other style of flighting that your drum uses.  Our goal is to reduce your cost per ton of asphalt produced, and to reduce your unscheduled downtime.  You can be assured that we’ll be using the very best quality of materials and workmanship.

For a quote, just email or call us (1-888-878-0898) with your dimensions and part numbers for your plant, and we’ll be pleased to offer your our superior pricing.


BOLT ON WEAR PLATES

Bolt-on wear plates are an excellent way to line drag conveyor floors, inlet chutes, cones and many other areas of high wear.  They are available in a wide range of sizes and can be cut to fit your specific application.

Other wear plates on the market are made of Ni-Hard, which, according to ASTM A-532/532M, are Class 1, Type A, B, C or D “white iron”.  They have a range of 1.4% chromium to a maximum 11% Cr, depending on whether it’s a Type A, B, C or D.

ACE Group's bolt-on wear plates are made of High-Cr (M7C3), which is Class 111, Type A (ASTM A-532/532M) classification of white iron.  This classification has a chromium content between 23-30%.  Our High-Cr plates are made of 27% chromium and are several steps up the ladder from Ni-Hard in quality and performance for abrasion and impact resistance.

High-Cr plates are less reliant on the “chilling” process to achieve their hardness than Ni-Hard, due to its chemical composition.  In addition, the hardness is more consistent through the entire thickness. Chromium also has a lower co-efficient of friction as well, which adds to its abrasion-resistance properties. We have a various number of sizes available.  Call us at 1-888-878-0898 for sizes and availability.


CHromium CARBIDE

ACEBOND Chromium Carbide

ACE Group offers ACEBOND Chromium Carbide screeds and floors for pavers, pick-up machines and plant applications.  Chromium carbide floor plates are designed to reduce the friction between the floors, the chain and bar assembly and the aggregate, increasing overall wear-life of the chain and bar.

We also offer augers, screeds and extension plates, tracks and components and chain and bar assemblies for various pavers, MC30/MC330 machines, pick-up machines, Shuttlebuggies MTV®, Flow Boy/Red River trailers, plant chains, motors, gearboxes and components.


PLANT CHAINS

Plant Chains


Scalping Decks

Scalping Deck

ACE scalping decks are a very economical way to filter out oversized aggregate or RAP from getting into your mix.  Economical, durable and dependable, these rugged devices will outperform decks that cost much more.  Because of their simple construction, there’s less to maintain or to break down.

Our decks are constructed to use common sizes of screen cloth, thereby making it easy to locate the various sizes you need to get your mix done. We can also provide the cloths for you.

In addition, we can produce them in a custom fashion for you, such as locating the motor on a certain side, in the event that you’re tight for room.  We can build you a stand for it or we can produce the entire conveyor line for you in either stationary or portable configurations.


Shaker Decks

Shaker Decks

Durable and dependable shaker decks are a very affordable way to filter out over-sized aggregate or RAP from getting into your mix.  As a result of their simple construction, there is less to maintain and break down.

Shaker decks are constructed to use common-size screen cloths, thereby making it easy to locate the various sizes you need to get your mix done.  Shaker decks can be custom made, such as mounting the motor on a certain side, should you be limited on space.

A custom stand can also be manufactured for your shaker deck.  Alternatively, you can have a conveyor line in either a stationery or portable configuration.

Shaker decks come in various sizes, with single decks ranging from 3’ x 5’ to 5’ x 10’.


Sprockets

Small Sprockets Medium Sprockets
Segmental Rim Sprockets
  • Fabricated from C1045 steel, then heat treated to a minimum of 50 RC hardness
  • Outlasts cast sprockets by as much as five times
Segmental Traction Wheels
  • Easier to install than one piece
  • Only replace the portion that wears out, saving you money
Solid Style Hubs
  • Fabricated construction to bolt your segmental sprockets and traction wheels
Split Hubs
  • Split design allows exceptional ease in installation
  • You do not have to remove the shaft to install, reducing your down-time significantly

Tires and Trunnions

We can supply you with high quality tires and trunnions for your drum.

A simple worksheet is supplied to you, which will give us the information we require to produce them in a timely manner for you.  This will give you a part where the quality is equal to or better than the OEM part, and will save you money in the process.

Our trunnions can be supplied with or without bearings.  We can also supply flanged trunnions.

The worksheets we supply will make this as easy as possible, and will mean you save a considerable amount of money and time.  Just call  1-888-878-0898 or email too find out how much we can save you.

Elevating Scrapers

Elevating Scrapers

ACE Group is able to provide you with a wide variety of parts for your elevating scrapers.  We manufacture premium products at a fraction of the price that the OEMs charge you, and, unlike OEMs, we can custom fit our products to meet your needs.  Contact us today for more info and a free quote.

We Supply Chains, Flights, Sprockets, Bolt Kits and Other Parts for the Following Makes and Models of Elevating Scrapers:

  • Caterpillar – 613, 613B, 613C, 615, 621, 623, 623B, 623E, 633
  • Clark – 110-HT, 210-H, 210-HB
  • Fiat Allis – 161, 261, 263B
  • Hancock – 294
  • International Harvester – E-200(early), E-200(late), E-211, 412B
  • John Deere – 760A, 762, 860A, 860B, 862
  • Terex – S11E, S23E
  • Wabco – 101F, 101G, 111A, 222, 222A, 222F, 222G, 222H

We Also Supply Original Equipment Parts For:

  • Fiat Allis – certain model loaders, dozers, graders and scrapers
  • Allis-Chalmers/CDS – forklifts, backhoes, loaders, engines, graders and scrapers
  • Lima-Clark – cranes, draglines and excavators
  • Austin-Western – graders, cranes and rollers
  • Hein-Werner – hydraulic excavators
  • White – lift trucks
  • Hanomag – loaders, dozers and parts distributors
  • Massey-Ferguson, Terex – certain models
  • Sanderson – loaders, forklifts and parts distributors
  • Brog-Warner – industrial transmission
  • Rex – vibatory rollers

Material Transfer Vehicles, Pick-Up Machines & LIVE-BOTTOM TRAILERS

Material Transfer Vehicles

Pick-Up Machines

We Produce Quality Parts for the Following Machine Brands:
  • Barber Greene
  • Lincoln
  • Kokal
  • CMI/Caterpillar
  • Cedarapids
Parts We Produce:
  • Chains
  • Flights in AR450
  • Floors in AR450, AR500 or Chromium
  • Carbide
  • Cutting Edges
  • Sprockets

Material Transfer Vehicles

Shuttle Buggy Cedarapids
Parts We Produce for Shuttle Buggy MTV® and Other Material Transfer Vehicles :
  • Chains
  • Flights
  • Belting
  • Floors
  • Sprockets
Other Major Machine Brands We Supply Parts For:
  • Cedarapids
  • Blaw-Knox
  • Roadtec

LIVE-BOTTOM TRAILERS

Trail King Live Bottom Trailer live bottom trailer chain and bar
Machine Brands We Supply Parts For:
  • Trail King
  • Red River
  • And many more (just provide specs and we'll take it from there)
Parts We Produce for Live Bottom Trailers:
  • Chains
  • Flights
  • Belting
  • Sprockets
As with all of our parts, the quality is equal to or better than OEM versions, and much more affordable.

Looking for more information or a no-strings-attached quote?  A representative from ACE Group is ready to help you today.  One of our experienced team members can be reached by phone at 1-888-878-0898.  Prefer email, send a message now to sales@asphaltace.com.
